CT2 Stepped Audio Attenuators

The CT2 Audio Volume Controls are high quality stepped 24-position attenuators. They feature maximum sonic quality, accuracy, and reliability. This makes them equally suited for audiophile applications and for professional applications.
Available as master volume control with 60dB attenuation range (10, 20, 50, 100, 250, 500 kOhm) and as individual channel fine adjustment (CT2-10k-1/fine) with 0.5dB level change between each step (only available with 1 deck, 10 kOhm).

DOWNLOADS

CT2 datasheet

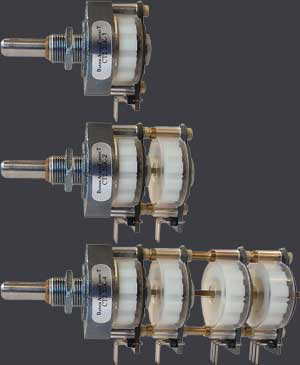

1-deck versions (mono)............
2-deck versions (stereo)...........
4-deck versions (bal. stereo)....

EUR 129 (US$ 138)
EUR 189 (US$ 202)
EUR 330 (US$ 353)

+25% VAT for shipments to within the EU
Shipping cot to be added

SPECIAL FEATURES

Low noise, non-inductive, metal film SMD resistor network

CT2-resistors CT2 PCB showing the SMD resistor network.

Compact design

Entire signal path gold plated

Shorter signal path than conventional attenuators with leaded resistors

Reduced inductance and stray capacitance

Improved sonic quality

Improved accuracy - 0.05dB tracking and 0.05dB attenuation accuracy

Improved reliability

Increased bandwidth

Reduced distortion, less than 0.0001%

KEY SPECIFICATIONS
Number of steps:	24
Bandwidth (10kOhm):	50 MHz
Channel matching:	+/-0.05 dB
Attenuation accuracy:	+/-0.05 dB
THD:	0.0001 %
Mechanical life, min.:	25,000 cycles

APPLICATIONS

Passive preamplifier (volume control

Volume control in audiophile amplifiers

Volume control in professional audio and A/V equipment

Upgrading Hi-Fi and A/V audio equipment

Reference audio attenuator

Test equipment attenuator

Wide-band attenuator
